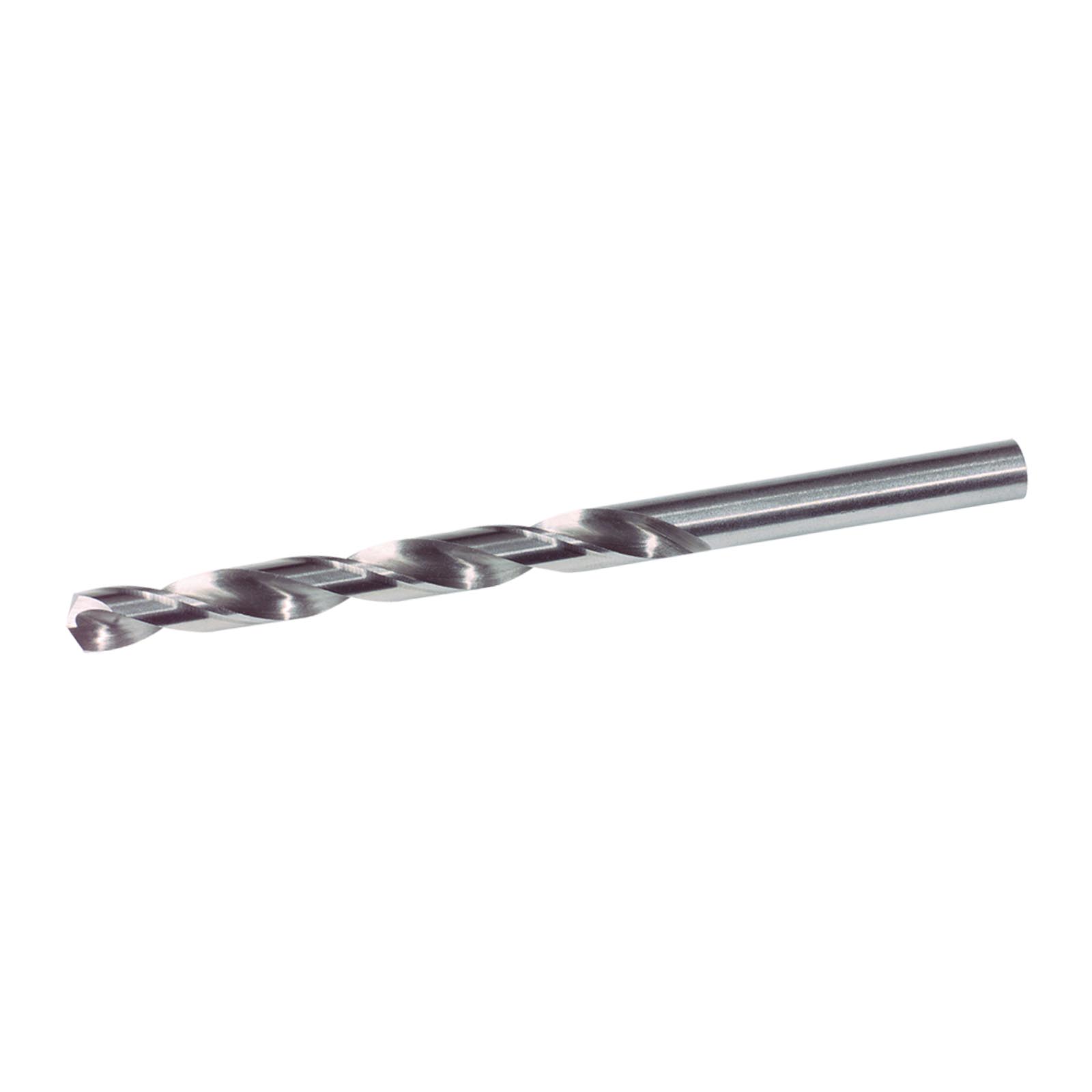

RUKO Twist Drill Bit for Metal HSS-G, Ground | 11.5 mm

You need to be logged in to view information
Unit:ks
Code 1:RU214115
EAN:4007140022127
Brand:RUKO
Alternate units:
1 bal is 5 ks

Description

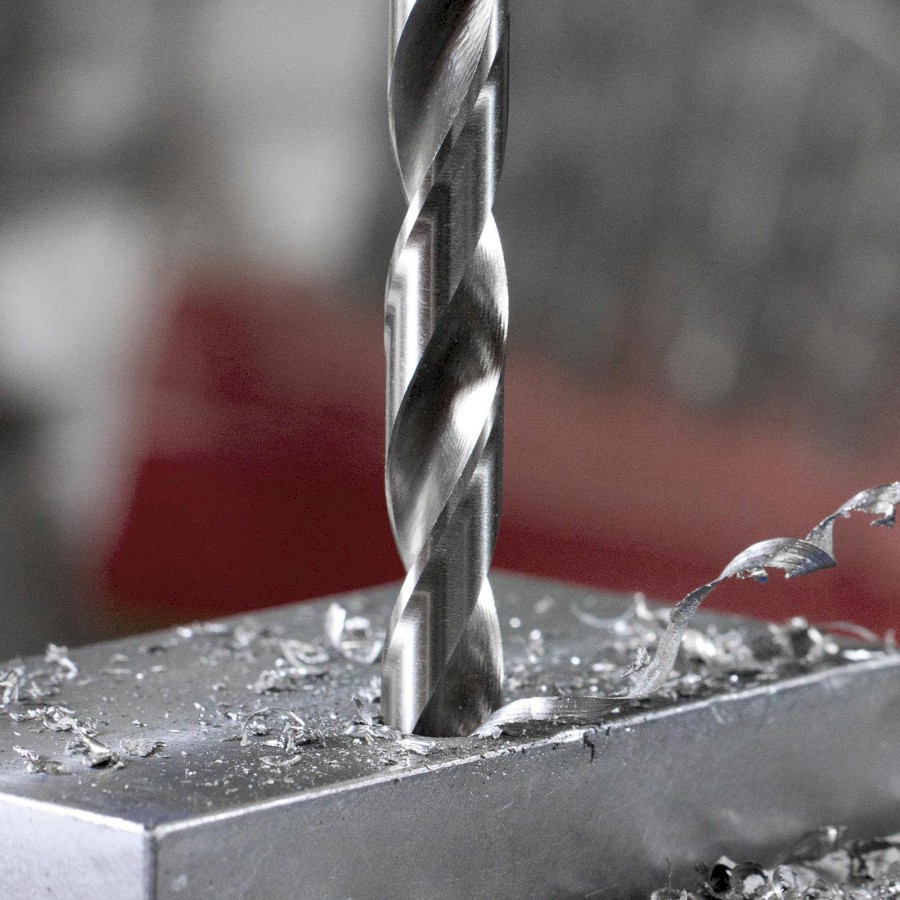

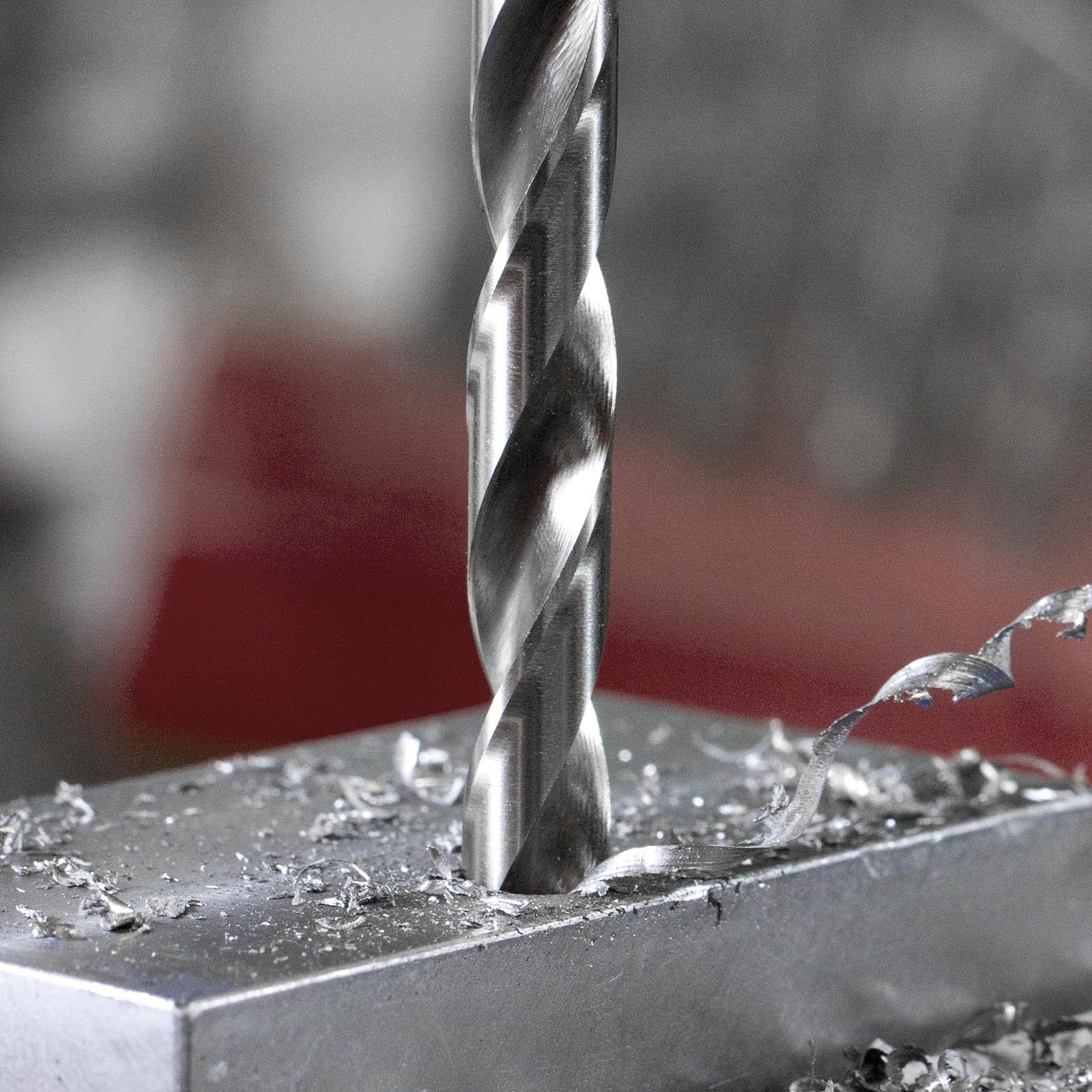

HSS-G high-speed steel drill bits made to DIN 338 with a top angle of 118° for excellent drilling quality and precision. Suitable for drilling a variety of materials such as alloy and non-alloy steel, steel cast iron, tempered and ductile cast iron, aluminium alloys, bronze and many other materials where the accuracy of the drilled hole plays a major role.

Hlavní přednosti

Overview

Délka 145 mm
Šířka 38 mm
Výška 38 mm
Hmotnost 0,084 kg

Length 145 mm
Width 38 mm
Height 38 mm
Weight 0,084 kg

Parameters

TECHNICAL SPECIFIKATION

Diameter
Diameter
11.5 mm
Total length (L)
Total length (L)
L 142 mm
Use
Use
aluminum, brass, plastic
Angle of tip point
Angle of tip point
118°
Angle of helix
Angle of helix
25-30°
Clamping
Clamping
cylindrical shank
Material
Material
HSS-G
Norm
Norm
DIN 338
